Монитор качества воздуха на ESP32 с датчиком SPS30 и облачными оповещениями

#define WIFI_SSID      "xxxxx" //your Wi-Fi SSID
#define WIFI_PASS      "xxxxx" //your Wi-Fi password
#define DEVICE_ID      "xxxxxxxxxx" // Physical Device ID
#define CONNECTION_KEY "xxxxxxxxxx" // Connection Key
#define API_KEY        "xxxxxxxxxx" // API Key
// WhatsApp Notification Settings
#define WHATSAPP_PHONE     "xxxxxxxxxx"   // Linked phone number with country code

// --- Layout: 2 columns x 5 rows = 10 boxes, 240x320 Portrait ---
const int boxW = 120; // 2 cols * 120 = 240px width
const int boxH = 64;  // 5 rows * 64  = 320px height
const int cols = 2;
const int rows = 5;
struct ParamBox {
 const char* label;
 const char* unit;
 float threshold;
 bool  isCPCB;
};
ParamBox params[10] = {
 { "PM1.0 MASS", "ug/m3",  30.0,  false },
 { "PM2.5 MASS", "ug/m3",  60.0,  true  },
 { "PM4.0 MASS", "ug/m3",  80.0,  false },
 { "PM10 MASS",  "ug/m3",  100.0, true  },
 { "PM0.5 NUM",  "#/cm3",  1000.0,false },
 { "PM1.0 NUM",  "#/cm3",  800.0, false },
 { "PM2.5 NUM",  "#/cm3",  700.0, false },
 { "PM4.0 NUM",  "#/cm3",  500.0, false },
 { "PM10 NUM",   "#/cm3",  400.0, false },
 { "CPCB AQI",  "",       100.0, true  }
};

void setup() {
 // 1. Disable brownout detector to prevent rebooting on battery voltage dips
 WRITE_PERI_REG(RTC_CNTL_BROWN_OUT_REG, 0);
 Serial.begin(115200);
 delay(2000); // Initial 2s delay for power supply voltage stabilization
 ...
}

if (WiFi.status() != WL_CONNECTED) {
   Serial.println("Wi-Fi Disconnected!");
   Serial.println("Shutting down sensor and restarting system to execute staged soft-start...");
   // Stop SPS30 fan before resetting system
   sensor.stopMeasurement();
   // 2-second delay to settle power grid before rebooting
   delay(2000);
   // Trigger full ESP32 microcontroller software reboot
   ESP.restart();
 }

// 4. Check CPCB AQI Threshold for WhatsApp Alert (Poor Category > 200)
   if (cpcbAqi > AQI_POOR_THRESHOLD) {
     if (!whatsappAlertTriggered) {
       Serial.println("CPCB AQI in POOR Category (>200)! Triggering WhatsApp Alert...");
       sendWhatsAppAlert(cpcbAqi);
       whatsappAlertTriggered = true; // Lock alert until AQI recovers below 200
     }
   } else {
     // Reset alert state when AQI drops back to Safe/Moderate range (<= 200)
     whatsappAlertTriggered = false;
   }

// Copyright (c) 2026 Jobit Joseph, Circuit Digest
// SPDX-License-Identifier: MIT
// =====================================================================
// ESP32 + SPS30 (UART) + ILI9341 + CircuitDigestCloud + WhatsApp Alert
// 2x5 Dashboard (PORTRAIT MODE) + Dual-batch MQTT + Indian CPCB AQI
// Extended 5-Second Soft-Start, Brownout Handling & Auto-Reset on Wi-Fi Loss
// =====================================================================
#include <Adafruit_GFX.h>
#include <Adafruit_ILI9341.h>
#include <SPI.h>
#include <SensirionUartSps30.h>
#include <CircuitDigestCloud.h>
#include <WiFiClientSecure.h>
// ESP32 System Headers for Brownout Detector Configuration
#include "soc/soc.h"
#include "soc/rtc_cntl_reg.h"

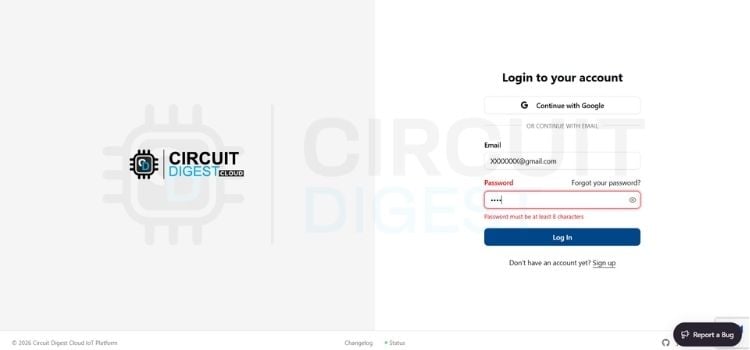

// ── Fill in your credentials ────────────────────────────────────────────────
#define WIFI_SSID      "your-Wi-Fi SSID"       // your Wi-Fi SSID
#define WIFI_PASS      "your-Wi-Fi password"   // your Wi-Fi password

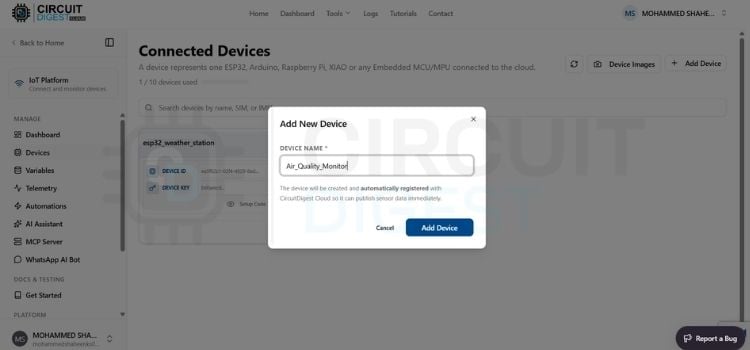

#define DEVICE_ID      "your-device-id"        // Physical Device ID
#define CONNECTION_KEY "your-connection-key"   // Connection Key
#define API_KEY        "your-api-key"          // API Key

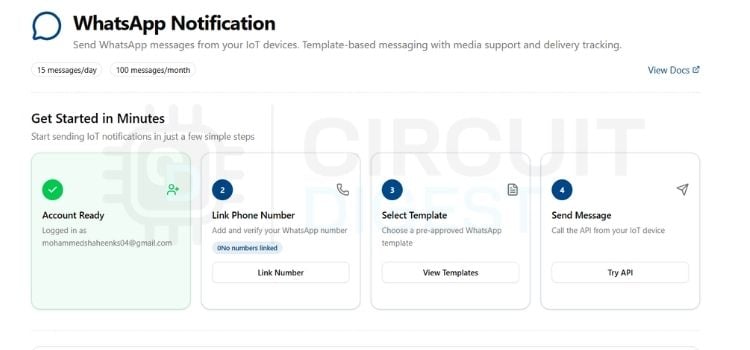

// WhatsApp Notification Settings
#define WHATSAPP_PHONE     "your-registered-phone-number" // Linked phone number with country code
#define AQI_POOR_THRESHOLD 200.0f                         // CPCB limit for POOR Air Quality (AQI > 200)

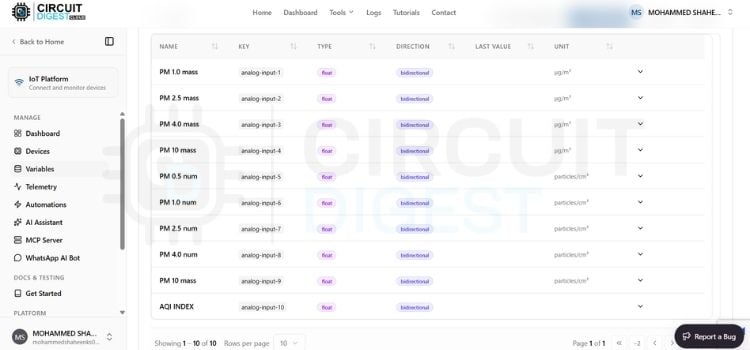

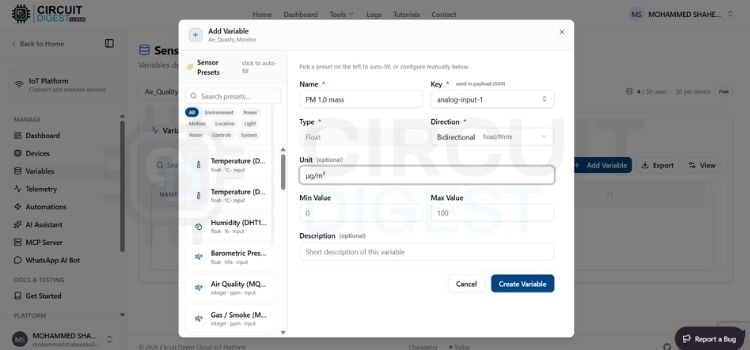

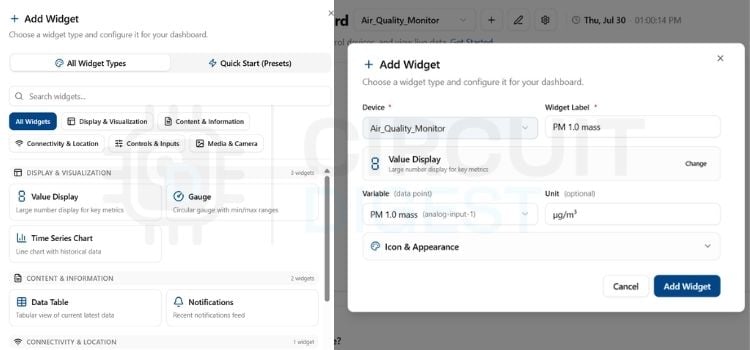

// Cloud Variable Keys
#define KEY_PM1_0_MASS "analog-input-1"
#define KEY_PM2_5_MASS "analog-input-2"
#define KEY_PM4_0_MASS "analog-input-3"
#define KEY_PM10_MASS  "analog-input-4"
#define KEY_PM0_5_NUM  "analog-input-5"
#define KEY_PM1_0_NUM  "analog-input-6"
#define KEY_PM2_5_NUM  "analog-input-7"
#define KEY_PM4_0_NUM  "analog-input-8"
#define KEY_PM10_NUM   "analog-input-9"
#define KEY_AQI        "analog-input-10" // Indian CPCB AQI
// ────────────────────────────────────────────────────────────────────────────
#define SENSOR_SERIAL_INTERFACE Serial2   // ESP32 HW Serial2 -> RX16 / TX17
#ifdef NO_ERROR
#undef NO_ERROR
#endif
#define NO_ERROR 0
CircuitDigestCloud CDcloud;
SensirionUartSps30 sensor;
static char errorMessage[64];
static int16_t error;
// Flag to track alert state and prevent spamming WhatsApp messages
static bool whatsappAlertTriggered = false;

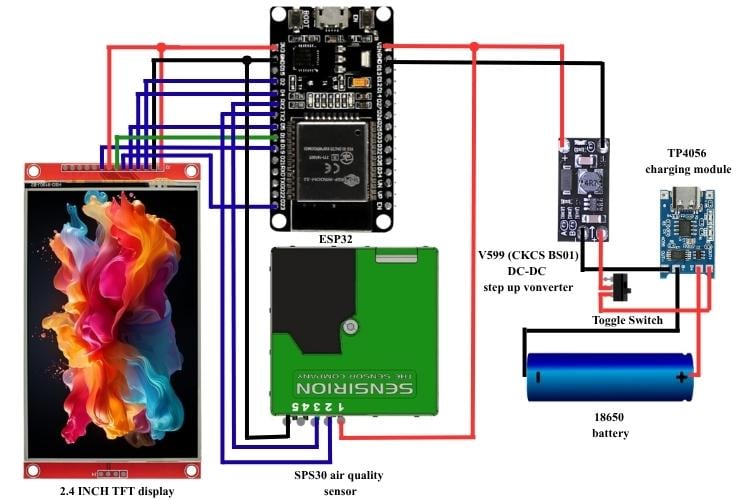

// --- TFT Pin Configurations ---
#define TFT_CS   2   // GPIO 2
#define TFT_DC   5   // GPIO 5
#define TFT_RST  4   // GPIO 4
Adafruit_ILI9341 tft = Adafruit_ILI9341(TFT_CS, TFT_DC, TFT_RST);
// --- Layout: 2 columns x 5 rows = 10 boxes, 240x320 Portrait ---
const int boxW = 120; // 2 cols * 120 = 240px width
const int boxH = 64;  // 5 rows * 64  = 320px height
const int cols = 2;
const int rows = 5;
struct ParamBox {
 const char* label;
 const char* unit;
 float threshold;
 bool  isCPCB;
};
ParamBox params[10] = {
 { "PM1.0 MASS", "ug/m3",  30.0,  false },
 { "PM2.5 MASS", "ug/m3",  60.0,  true  },
 { "PM4.0 MASS", "ug/m3",  80.0,  false },
 { "PM10 MASS",  "ug/m3",  100.0, true  },
 { "PM0.5 NUM",  "#/cm3",  1000.0,false },
 { "PM1.0 NUM",  "#/cm3",  800.0, false },
 { "PM2.5 NUM",  "#/cm3",  700.0, false },
 { "PM4.0 NUM",  "#/cm3",  500.0, false },
 { "PM10 NUM",   "#/cm3",  400.0, false },
 { "CPCB AQI",  "",       100.0, true  }
};
void drawDashboardGrid();
void updateBox(int i, float value);
void sendWhatsAppAlert(float aqiValue);
float calculateAQI_CPCB(float pm25, float pm10);
void setup() {
 // 1. Disable brownout detector to prevent rebooting on battery voltage dips
 WRITE_PERI_REG(RTC_CNTL_BROWN_OUT_REG, 0);
 Serial.begin(115200);
 delay(2000); // Initial 2s delay for power supply voltage stabilization
 // --- Step 1: Initialize Display ---
 Serial.println("[Boot Step 1/3] Starting TFT Display...");
 tft.begin();
 tft.setRotation(0);             // Portrait mode, 240x320
 tft.fillScreen(ILI9341_BLACK);
 drawDashboardGrid();
 Serial.println("Waiting 5 seconds for display power stabilization...");
 delay(5000); // 5-second pause to isolate display power draw
 // --- Step 2: Initialize SPS30 Sensor ---
 Serial.println("[Boot Step 2/3] Starting SPS30 Sensor...");
 SENSOR_SERIAL_INTERFACE.begin(115200, SERIAL_8N1, 16, 17);
 sensor.begin(SENSOR_SERIAL_INTERFACE);
 sensor.stopMeasurement();
 int8_t serialNumber[32] = {0};
 error = sensor.readSerialNumber(serialNumber, 32);
 if (error != NO_ERROR) {
   Serial.print("Error reading serial number: ");
   errorToString(error, errorMessage, sizeof errorMessage);
   Serial.println(errorMessage);
 }
 error = sensor.startMeasurement(SPS30_OUTPUT_FORMAT_OUTPUT_FORMAT_FLOAT);
 if (error != NO_ERROR) {
   Serial.print("Error starting measurement: ");
   errorToString(error, errorMessage, sizeof errorMessage);
   Serial.println(errorMessage);
 } else {
   Serial.println("SPS30 Measurement started successfully.");
 }
 Serial.println("Waiting 5 seconds for SPS30 internal fan to stabilize...");
 delay(5000); //5-second pause to let fan motor reach full operational speed
 // --- Step 3: Lower Wi-Fi TX Power & Connect to Cloud ---
 Serial.println("[Boot Step 3/3] Turning on Wi-Fi & Connecting to Cloud...");

 // Lower Wi-Fi transmit power to prevent voltage sags on battery power
 WiFi.setTxPower(WIFI_POWER_15dBm);
 if (!CDcloud.begin(WIFI_SSID, WIFI_PASS, DEVICE_ID, CONNECTION_KEY, API_KEY)) {
   Serial.println("CDcloud begin() failed — check credentials. Rebooting...");
   delay(2000);
   ESP.restart(); // Reset system if initial cloud connection fails
 } else {
   Serial.println("CDcloud initialized successfully.");
 }
 Serial.println("Boot sequence complete. Entering main loop.");
}
void loop() {
 // Drive WiFi reconnect, MQTT connection, and auto-heartbeat
 CDcloud.loop();
 // ── Wi-Fi Disconnection & Full System Reboot Handler ───────────────────────
 if (WiFi.status() != WL_CONNECTED) {
   Serial.println("Wi-Fi Disconnected!");
   Serial.println("Shutting down sensor and restarting system to execute staged soft-start...");
   // Stop SPS30 fan before resetting system
   sensor.stopMeasurement();
   // 2-second delay to settle power grid before rebooting
   delay(2000);
   // Trigger full ESP32 microcontroller software reboot
   ESP.restart();
 }
 // ──────────────────────────────────────────────────────────────────────────
 static uint32_t lastPublish = 0;
 if (millis() - lastPublish >= 5000) { // Update every 5 seconds
   lastPublish = millis();
   float mc1p0 = 0, mc2p5 = 0, mc4p0 = 0, mc10p0 = 0;
   float nc0p5 = 0, nc1p0 = 0, nc2p5 = 0, nc4p0 = 0, nc10p0 = 0;
   float typicalParticleSize = 0;
   error = sensor.readMeasurementValuesFloat(mc1p0, mc2p5, mc4p0, mc10p0,
                                              nc0p5, nc1p0, nc2p5, nc4p0,
                                              nc10p0, typicalParticleSize);
   if (error != NO_ERROR) {
     Serial.print("Error reading SPS30 values: ");
     errorToString(error, errorMessage, sizeof errorMessage);
     Serial.println(errorMessage);
     return;
   }
   // Compute Indian CPCB AQI based on PM2.5 and PM10
   float cpcbAqi = calculateAQI_CPCB(mc2p5, mc10p0);
   float values[10] = {
     mc1p0, mc2p5, mc4p0, mc10p0,
     nc0p5, nc1p0, nc2p5, nc4p0, nc10p0,
     cpcbAqi
   };

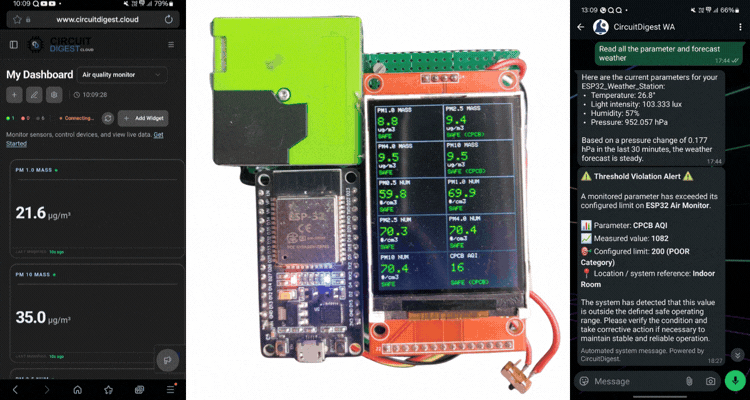

   // 1. Refresh local TFT screen boxes
   for (int i = 0; i < 10; i++) {
     updateBox(i, values[i]);
   }
   // 2. Publish BATCH 1 (5 Parameters)
   CDcloud.publish({
     {KEY_PM1_0_MASS, mc1p0},
     {KEY_PM2_5_MASS, mc2p5},
     {KEY_PM4_0_MASS, mc4p0},
     {KEY_PM10_MASS,  mc10p0},
     {KEY_PM0_5_NUM,  nc0p5}
   });
   delay(200);
   // 3. Publish BATCH 2 (5 Parameters)
   CDcloud.publish({
     {KEY_PM1_0_NUM,  nc1p0},
     {KEY_PM2_5_NUM,  nc2p5},
     {KEY_PM4_0_NUM,  nc4p0},
     {KEY_PM10_NUM,   nc10p0},
     {KEY_AQI,        cpcbAqi}
   });
   Serial.println("SPS30 metrics published to Cloud.");
   // 4. Check CPCB AQI Threshold for WhatsApp Alert (Poor Category > 200)
   if (cpcbAqi > AQI_POOR_THRESHOLD) {
     if (!whatsappAlertTriggered) {
       Serial.println(" CPCB AQI in POOR Category (>200)! Triggering WhatsApp Alert...");
       sendWhatsAppAlert(cpcbAqi);
       whatsappAlertTriggered = true; // Lock alert until AQI recovers below 200
     }
   } else {
     // Reset alert state when AQI drops back to Safe/Moderate range (<= 200)
     whatsappAlertTriggered = false;
   }
 }
}
// ---------------------------------------------------------------
// Indian CPCB AQI Calculation Sub-functions
// ---------------------------------------------------------------
float getSubIndex_PM25(float pm25) {
 if (pm25 <= 0.0f)   return 0.0f;
 if (pm25 <= 30.0f)  return (50.0f / 30.0f) * pm25;
 if (pm25 <= 60.0f)  return 51.0f + ((100.0f - 51.0f) / (60.0f - 30.0f)) * (pm25 - 30.0f);
 if (pm25 <= 90.0f)  return 101.0f + ((200.0f - 101.0f) / (90.0f - 60.0f)) * (pm25 - 60.0f);
 if (pm25 <= 120.0f) return 201.0f + ((300.0f - 201.0f) / (120.0f - 90.0f)) * (pm25 - 90.0f);
 if (pm25 <= 250.0f) return 301.0f + ((400.0f - 301.0f) / (250.0f - 120.0f)) * (pm25 - 120.0f);
 return 401.0f + ((500.0f - 401.0f) / (150.0f)) * (pm25 - 250.0f);
}
float getSubIndex_PM10(float pm10) {
 if (pm10 <= 0.0f)   return 0.0f;
 if (pm10 <= 50.0f)  return (50.0f / 50.0f) * pm10;
 if (pm10 <= 100.0f) return 51.0f + ((100.0f - 51.0f) / (100.0f - 50.0f)) * (pm10 - 50.0f);
 if (pm10 <= 250.0f) return 101.0f + ((200.0f - 101.0f) / (250.0f - 100.0f)) * (pm10 - 100.0f);
 if (pm10 <= 350.0f) return 201.0f + ((300.0f - 201.0f) / (350.0f - 250.0f)) * (pm10 - 250.0f);
 if (pm10 <= 430.0f) return 301.0f + ((400.0f - 301.0f) / (430.0f - 350.0f)) * (pm10 - 430.0f);
 return 401.0f + ((500.0f - 401.0f) / (70.0f)) * (pm10 - 430.0f);
}
float calculateAQI_CPCB(float pm25, float pm10) {
 float subPM25 = getSubIndex_PM25(pm25);
 float subPM10 = getSubIndex_PM10(pm10);
 return (subPM25 > subPM10) ? subPM25 : subPM10;
}
// ---------------------------------------------------------------
// Function to send WhatsApp HTTP REST API alert
// ---------------------------------------------------------------
void sendWhatsAppAlert(float aqiValue) {
 WiFiClientSecure client;
 client.setInsecure(); // Bypass SSL certificate verification
 if (!client.connect("www.circuitdigest.cloud", 443)) {
   Serial.println("WhatsApp connection failed!");
   return;
 }
 String payload =
   "{\"phone_number\":\"" + String(WHATSAPP_PHONE) + "\","
   "\"template_id\":\"threshold_violation_alert\","
   "\"variables\":{"
   "\"device_name\":\"ESP32 Air Monitor\","
   "\"parameter\":\"CPCB AQI\","
   "\"measured_value\":\"" + String((int)aqiValue) + "\","
   "\"limit\":\"200 (POOR Category)\","
   "\"location\":\"Indoor Room\"}}";
 client.println("POST /api/v1/whatsapp/send HTTP/1.1");
 client.println("Host: www.circuitdigest.cloud");
 client.println("X-API-Key: " + String(API_KEY));
 client.println("Content-Type: application/json");
 client.println("Connection: close");
 client.print("Content-Length: ");
 client.println(payload.length());
 client.println();
 client.print(payload);
 Serial.println("WhatsApp API Payload Sent. Server Response:");
 while (client.connected() || client.available()) {
   if (client.available()) {
     String line = client.readStringUntil('\n');
     Serial.println(line);
   }
 }
 client.stop();
}
// ---------------------------------------------------------------
// Draw static 2x5 grid dashboard (Portrait Layout)
// ---------------------------------------------------------------
void drawDashboardGrid() {
 tft.setTextColor(ILI9341_WHITE);
 tft.setTextSize(1);
 for (int i = 0; i < 10; i++) {
   int col = i % cols;
   int row = i / cols;
   int x = col * boxW;
   int y = row * boxH;
   tft.drawRect(x, y, boxW, boxH, ILI9341_DARKGREY);
   tft.setCursor(x + 5, y + 4);
   tft.print(params[i].label);
 }
}
// ---------------------------------------------------------------
// Update content area of one dashboard slot (Portrait Layout)
// ---------------------------------------------------------------
void updateBox(int i, float value) {
 int col = i % cols;
 int row = i / cols;
 int x = col * boxW;
 int y = row * boxH;
 // Clear value and status area inside the box
 tft.fillRect(x + 2, y + 16, boxW - 4, boxH - 18, ILI9341_BLACK);
 bool hasThreshold = params[i].threshold > 0;
 bool safe = true;
 uint16_t valColor = ILI9341_CYAN;
 if (hasThreshold) {
   safe = (value <= params[i].threshold);
   valColor = safe ? ILI9341_GREEN : ILI9341_RED;
 }
 // --- Value Line ---
 tft.setTextSize(2);
 tft.setTextColor(valColor);
 tft.setCursor(x + 5, y + 20);

 // Format AQI without decimals, keep 1 decimal for other values
 if (i == 9) {
   tft.print(value, 0);
 } else {
   tft.print(value, 1);
 }
 // --- Unit Line ---
 tft.setTextSize(1);
 tft.setCursor(x + 5, y + 38);
 tft.setTextColor(ILI9341_WHITE);
 tft.print(params[i].unit);
 // --- Status Banner Line ---
 tft.setCursor(x + 5, y + 50);
 if (!hasThreshold) {
   tft.setTextColor(ILI9341_YELLOW);
   tft.print("INFO ONLY");
 } else if (safe) {
   tft.setTextColor(ILI9341_GREEN);
   tft.print(params[i].isCPCB ? "SAFE (CPCB)" : "SAFE");
 } else {
   tft.setTextColor(ILI9341_RED);
   tft.print(params[i].isCPCB ? "NOT SAFE(CPCB)" : "NOT SAFE");
 }
}
